Monoprice Maker Select Ultimate 3D Printer Review

Post Icon

Monoprice Maker Select Ultimate 3D Printer

checkprice

Monoprice Maker Select Ultimate 3D Printer Overview

The Maker Select Ultimate 3D printer is the premier machine in the Monoprice line of printers. While the MP Select Ultimate is still on the higher end of budget 3D printers, do not let the price fool you. Monoprice has packed in a surprising amount of functionality typically found in printers twice the price.

For enthusiasts who need a bit more power and precision than found with Monoprice’s MP Select Mini or MP Select V2, the Ultimate packs a punch. You’ll find significant improvements over other options from Monoprice, including 20 micron (0.02 mm) layer resolution, anti-jam filament feeder, a 300 mm per second print speed, increased build volume and more.

Included with the Maker Select Ultimate

Like it’s little brothers the MP Select V2 and the MP Select Mini, Monoprice’s Maker Select Ultimate 3D printer comes with everything you need to get started. In the box, you’ll find:

  • Maker Select Ultimate 3D printer
  • Spool holder
  • Print bed mat
  • Hex wrenches
  • AC power cord
  • USB cable
  • Tweezers
  • Scraper
  • Card reader
  • MicroSD card with adapter

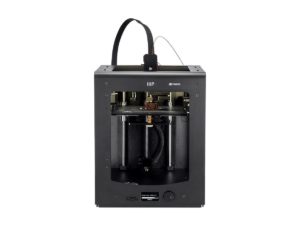

MP Select Ultimate

 Monoprice Maker Select Ultimate Specs

Print Technology FFF
Build Volume 200 x 200 x 175 mm
Layer Resolution Ultra high: 20 micron
High: 60 micron
Medium: 100 micron
Low: 200 micron
Position Precision X: 12.5 Micron, Y: 12.5 Micron, Z: 5 micron
Filament Diameter 1.75mm
Nozzle Diameter 0.4mm
Print Speed 1 ~ 150 mm/sec
Travel Speed 1 ~ 350 mm/sec
Software Package Cura
File Types STL, OBJ, DAE, AMF
Operating System Support Windows® (XP and later 32/64-bit)
Mac® OS X® (10.6+ 64-bit)
Ubuntu Linux (12.04+)
SD Card Requirements SD™, FAT16 or FAT32, 8 GB max capacity
Input Power 100 ~ 240 VAC, 50/60 Hz, 4A
Power Consumption 221 watts
Connectivity Stand-alone printing from SD card
USB
Average Operational Noise 49 dBA
Frame Dimensions 13.7″ x 10.4″ x 16.9″ (348 x 264 x 430 mm)
Assembled Dimensions 14.2″ x 17.3″ x 18.9″ (360 x 440 x 480 mm)
Weight 30.6 lbs. (13.9 kg)
Ambient Operating Temperature +59 ~ +89°F (+15 ~ +32°C)
Storage Temperature +32 ~ +89°F (0 ~ +32°C)
Nozzle Temperature +356 ~ +500°F (+180 ~ +260°C)
Build Plate Temperature +122 ~ +212°F (+50 ~ +100°C)

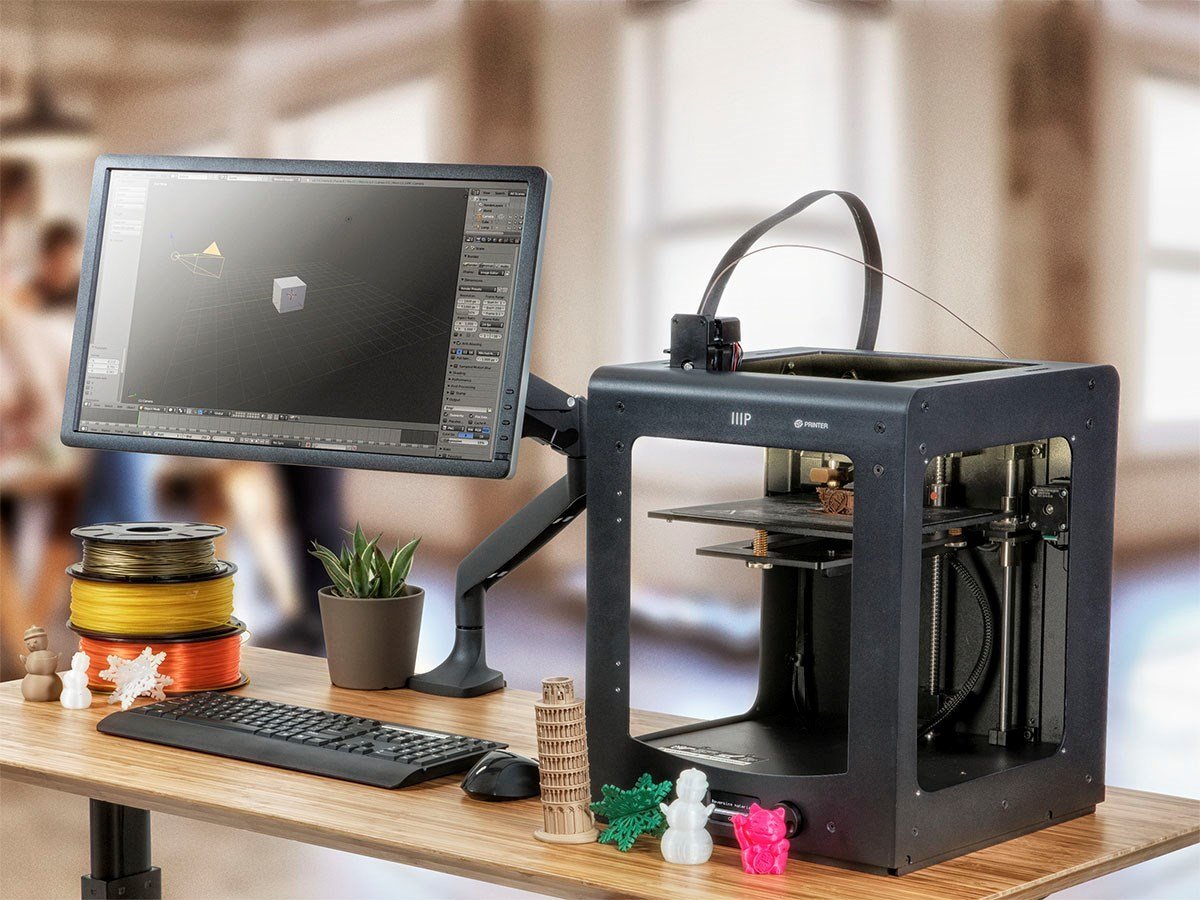

Maker Select Ultimate Example

Have you used the Monoprice Maker Select Ultimate 3D Printer? Please comment and let the community know your thoughts, rating, or review. You can get a great deal on Monoprice Maker Select Ultimate 3D Printer here.
